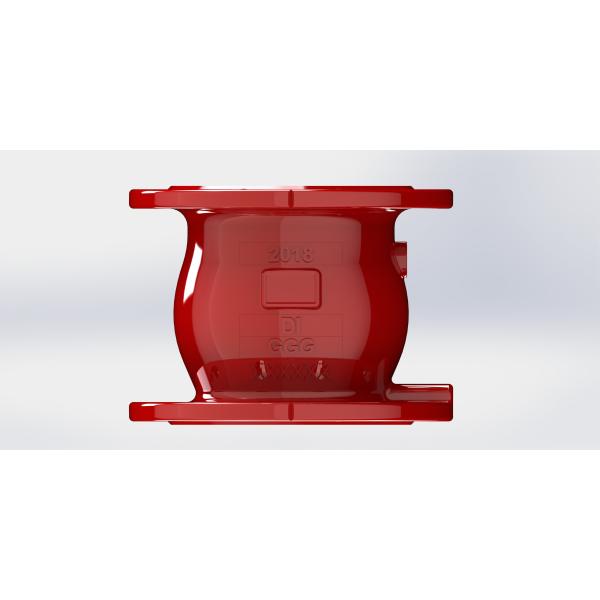

Nozzle Check Valve with anti water hammer and low Head Loss function
Description:
NSCV- Non Slam Check Valve is generally used as protection against reverse flow when power failure in areas where noise pollution or water hammering is a critical issue. It has two outstanding features: anti water hammer and low head Loss function. The faster closing function can decrease the reverse speed of water to minimize the water hammer.
Features:
· Extremely short stroke can help quick closely
· Diffuser design- lowest head loss and streamline flow
· Spring hidden on back side of disc prevent clogging
· Bronze bearing-long life service
· Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· High strength ductile iron body used for durability and less
weight.
· Advanced dynamic design of single body with diffuser provides
streamline flow and assures lower head loss.
· Stainless steel spring hidden in the diffuser under protection
while valve in operation.
· Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange
dimension.
· No leakage of rubber disc seat.
· Installation can be vertical/horizontal/inclined operated.
Technical Data:
Size | DN50-DN600 |
Working Temperature | - 10C- 80C |
Flange | AISI B16.1 Or PN16 |
Flow Media | Clean Water |
Quality System | |
IQC | Check call incoming parts |
IPQC | Check the production process is qualified |
FQC | All valves are pressure tested |
OQC | Check the valve ourlook and packing |
Dimension:
DN50 - DN350
DN400 - DN600
Materials:
DN50-DN350
![]() |
