| Brand Name : | AFC , OEM |
| Model Number : | A7MD |
| Certification : | WRAS NSF61/372 |
| Price : | USD RMB |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Based on order |
| Delivery Time : | 45-60 days |
Electrical Type Pump Control Valve- A76D
Description:

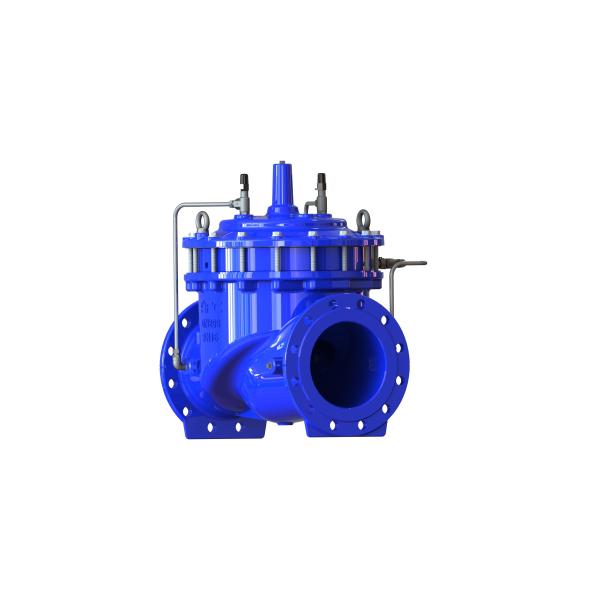

A7MD is a mechnical type pump control valve.
When pump starts, A7MD will open slowly by the pressure increased
in the middle chamber which provide a less headloss.
When the pump stops or out of electricirty, A7MD will act like a check valve. It will block the 80% of the flow area quickly and closed slowly at the last 20% stroke. This will prevent water hammer and water slamming.
Features:
| A7MD is a double chamber pump control valve series which will minimize the head loss |
| Simple, reliable and easy to install and maintenance |
| Nylon Reinforcement diaphragm for long life service |
| Stainless steel seat. Good for anti-corrosion |
| Stem movement with guide provide reliable performance |
| Powder epoxy coating |
| Meets standard BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1, BS EN 1092-2 |
Technical Data:
| Size range | DN 50-800MM |
| Pressure ratings | 1.0Mpa, 1.6Mpa,2.5Mpa |
| Flange | 1.0Mpa,1.6Mp,2.5 Mpa |
| Working temperature | -10°~80°C. |
| Flow media | clean water |
DN50-DN350
Parts list :




DN400-DN800
Parts list :





Outside piping diagram:

|
