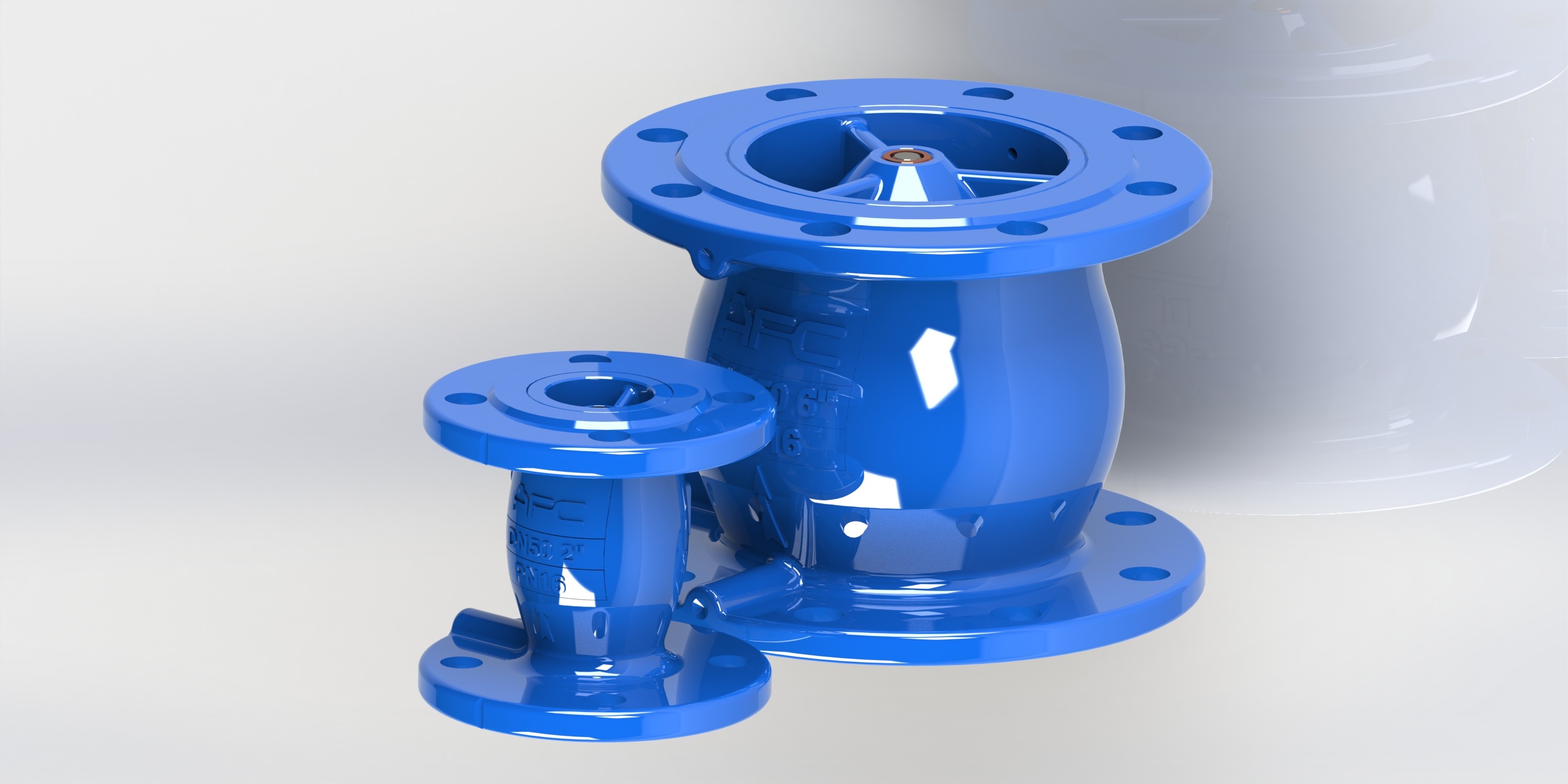

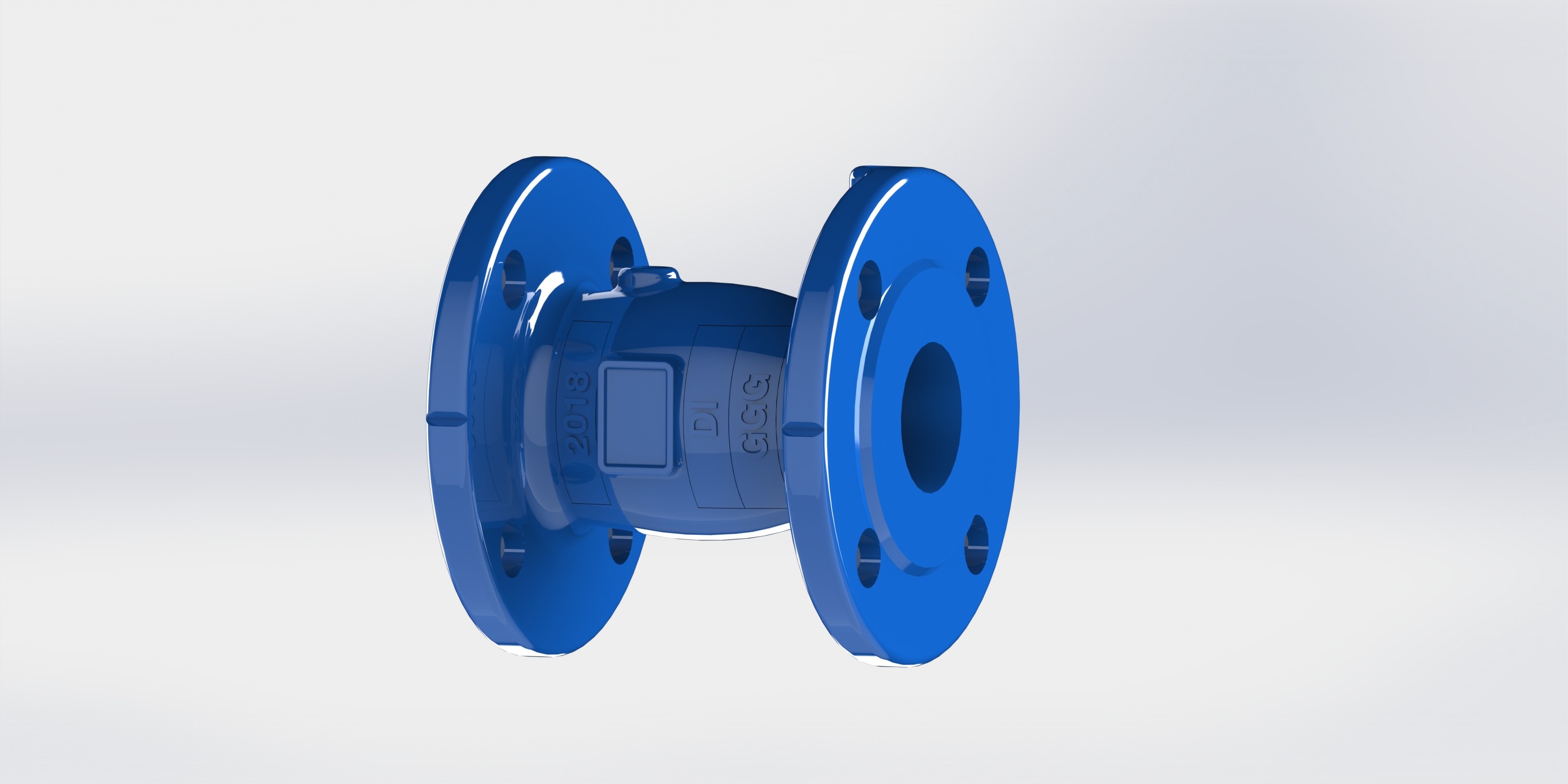

    Quick Close Water Control Valve , Water Hammer Control Non Slam Check Valve

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : NSCV
    Certification : WRAS, NSF61/372
    Price : USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Quick Close Water Control Valve , Water Hammer Control Non Slam Check Valve


    Water Hammer Control Non Slam Check Valve EPOXY Coated Quick Close Ductile iron​


    Description


    NSCV- Non Slam Check Valve is used as protection against reverse flow when power failure in areas where noise pollution or water hammering is a critical issue. It can provide not only quiet performance but also low head loss.


    Features:


    ·High strength ductile iron body used for durability and less weight.
    ·Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
    ·One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
    ·Coated with powder epoxy both inside & outside for corrosion resistance.
    ·Bronze bushing reduce wearing problem during operation.
    ·Hydrodynamic design with spring ensures non slamming and water hammerless.
    ·Stainless steel spring hidden in the diffuser under protection while valve in operation.
    ·Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
    · Installation can be vertical/horizontal/inclined.
    ·Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.


    Technical Data:


    SizeDN50-DN600
    Working Temperature- 10C- 80C
    FlangeAISI B16.1 Or PN16
    Flow MediaClean Water

    Service Fields:


    Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.


    Dimension:


    DN50 - DN350



    DN400 - DN600


    Materials:


    DN50-DN350
